All Custom Options Available!
| Opening Type | Tilt and Turn (Screen Sash) |
|---|---|
| Fabrication Process | Mechanical Corner Crashing + Sealant Injection |
| Profile Thickness | 1.8mm |
| Glass Configuration | 5+12A+5+12+5+12A+5(mm) |
| Glass Rebate | 57mm |
| Hardware | CMECH High-Performance System |
| Thermal Break | PA66GF25 polyamide composite thermal break bar |
| Seal System | EPDM Automotive-Grade Seals |
| Thermal Insulation | Class 10 |
| Sound Insulation | Class 4 |
| Water Tightness | Class 6 |
| Air Permeability | Class 8 |
| Wind Load Resistance | Class 9 |

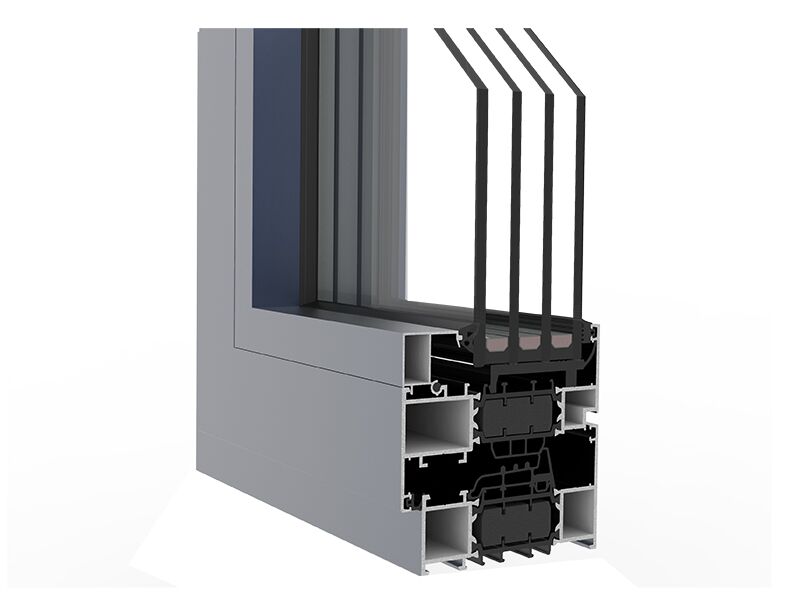

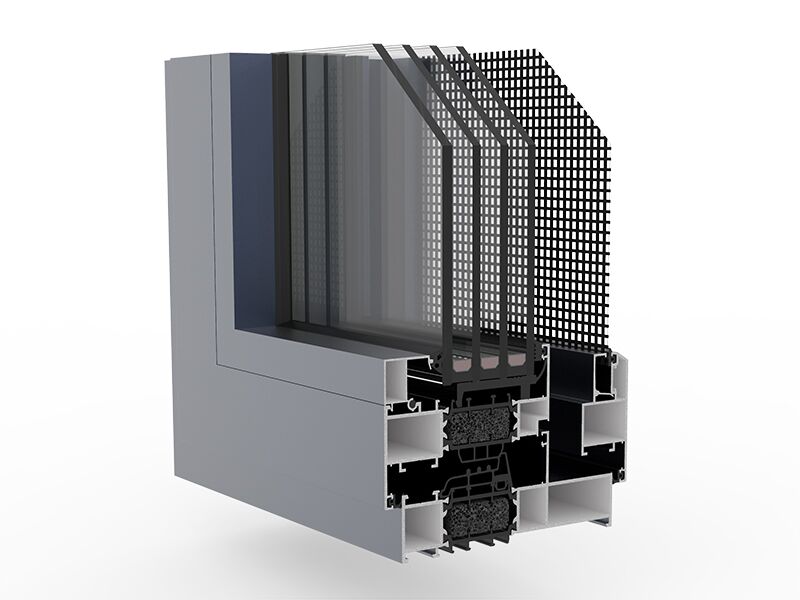

Passive House Window System
Certified aluminum profiles with thermal breaks and triple-glazed argon-filled units maximize solar gain while eliminating thermal bridges. PHI/PHIUS-compliant engineering ensures HVAC load reduction via precision airtightness (≤0.8 W/m²K U-value) and natural ventilation synergy.
